FoodSafe Hub Drain

Hygienic equipment drainage designed to prevent backflow.

Materials: T304 or T316 Stainless Steel

This product is a custom drainage solution by FoodSafe Drains.

STAINLESS STEEL

HYGIENIC DESIGN

CUSTOM ENGINEERING

SPECIFICATIONS CONTACT US REQUEST A QUOTE

APPLICATIONS

Meat & Poultry
Dairy
Brewery/Winery
Pet Food
Bakery

Overview

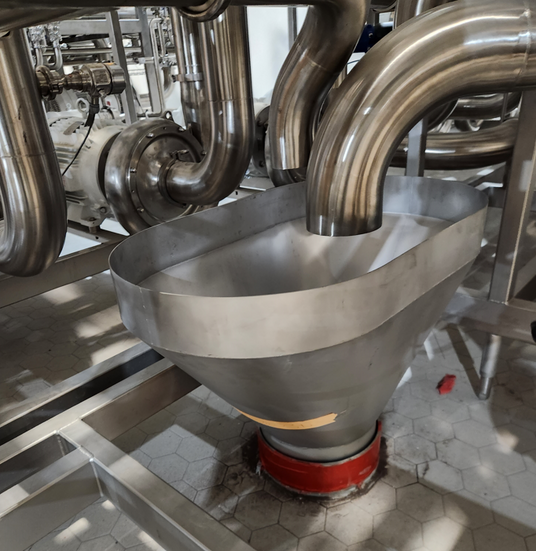

Hub Drains are specialized drains made to provide drainage for equipment whose drainage outlets require an air gap before draining into the main wastewater system.

Available with removable covers and strainer baskets, our designs are fully compliant with NSF/ANSI/3-A standards. This means smooth interiors with fully radiused edges, leaving no sharp corners, which could harbor bacterial growth.

We offer both standard hub drains and custom funnel drains for projects of any size.

HYGIENIC DESIGN
Constructed from premium T304/T316 stainless steel, our hygienic drains feature passivated surfaces, rounded corners, and no-niche designs. This eliminates pooling liquids and harborage points, controlling odors by mitigating bacterial growth. High-grade materials paired with robust manufacturing practices deliver durable drainage that meets or exceeds industry standards (NSF/ANSI/3-A) and supports internationally recognized certification programs (GFSI/SQF/BRGCS).
EASY CLEANING AND MAINTENANCE
We make maintenance a breeze by designing from the ground up with accessibility in mind. Rounded corners and no-niche designs leave no sharp corners where dirt and grime can hide. Our integrated strainer baskets are easy to remove and empty to manage solids and keep your system clear of debris. Paired with accessories like our Flush-Flo system, custom-fit Cleaning Paddles, and CIP capabilities, our drains reduce downtime and daily labor while maintaining cleanliness in your facility.

CUSTOM ENGINEERED
Say goodbye to premiums for drafting, design engineering, and consultation services. Customization is baked into our in-house model and included directly in the original sales quote. We blueprint, manufacture, and ship all under one roof, allowing us to match client requirements quickly and nimbly. Bridge the gap between design and reality and match custom orders with standard lead times by speaking with one of our drainage design experts today.
FILTERING SYSTEM
To maintain function without clogging, our drains use strainer baskets to intercept solids/debris before they enter wastewater piping. These filtering systems can be customized for your application through perforation size and density as well as basket style. These integrated strainers prevent underground blockages and allow for easy retrieval of lost items. SOP’s write themselves with this system, providing employees with clear direction, reducing downtime, and ensuring consistent performance.

Specifications

MATERIALS:	T304 Stainless Steel T316 Stainless Steel	INLET x OUTLET, HEIGHT:	3 x 2”, 7.5” / 76 x 51mm, 191mm 4 x 3”, 8” / 102 x 76mm, 203mm 6 x 4”, 15” / 152 x 102mm, 381mm 8 x 4”, 15” / 203 x 102mm, 381mm 8 x 6”, 15” / 203 x 152mm, 381mm 12 x 6”, 15” / 305 x 152mm, 381mm 10 x 8”, 14” / 254 x 203mm, 356mm 12 x 8”, 15” / 305 x 203mm, 381mm 12 x 10”, 15” / 305 x 254mm, 381mm 14 x 12”, 20” / 356 x 305mm, 508mm 16 x 14”, 21” / 406 x 356mm, 533mm
PIPE SCHEDULE:	40 10
