6000 Series Slot Drain

Name: 6000 Series Slot Drain
Brand: Global Drain Technologies
Availability: InStock

Capture high flow rates while maintaining a shallow depth profile with this versatile linear drain.

Load Class: E
Materials: T304/T316 Stainless or Galvanized Steel
Installation: Pre-sloped

STAINLESS STEEL

LOAD RATED

PRE-SLOPED

SPECIFICATIONS CONTACT US REQUEST A QUOTE

APPLICATIONS

Shops
Processing facilities
Garages
Plazas
Walkways

Overview

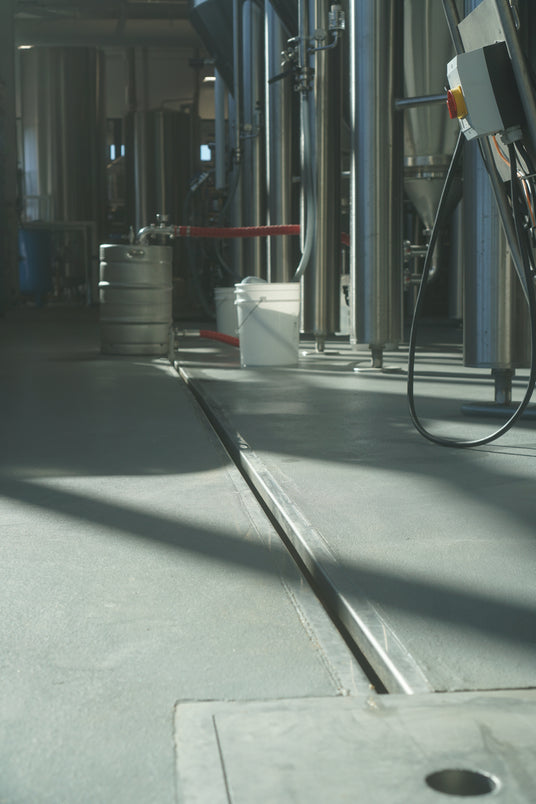

A 6000 Series Slot Drain Installed in the floor of a brewery

The 6000 Series Slot Drain provides high flow rates with a shallow depth profile. It is often used for shallow slabs and other applications where depth is at a premium. This drain is load class rated C, making it ideal for medium-duty applications like light vehicle traffic. Made from T304 or T316 stainless steel and featuring a pre-sloped design, this drain is durable and easy to install for a simple and long-lasting finish.

EASY TO MAINTAIN
Drainage systems must face leaves, dirt, and liquid runoff without clogging. You want a system designed to handle debris with minimal intervention. Pre-sloped drains use gravity to move solids through the system. A standard 0.5% slope pulls dirt and debris along the drain body. This evacuates standing water and decaying material that can cause foul odors. For manual cleaning, we include form-fit paddles that fit into the slot and are pulled along the length of the drain to clear debris into the catch basin system.
SEAMLESS DESIGN
Drains should disappear into the landscape. Fuse functionality and design integration with a low-profile slot drain solution. Grated drains can crack, warp and disrupt the look and feel of a space. Flush-fitting linear drainage hides in plain sight, matching any aesthetic and delivering accessible performance for pedestrians and vehicles. Ditch dirty channel drains and upgrade your space with a customized drainage solution from Global Drain Technologies.

CUSTOM ENGINEERING
Say goodbye to premiums for drafting, design engineering, and consultation services. Customization is baked into our in-house model and included directly in the original sales quote. We blueprint, manufacture, and ship all under one roof, allowing us to match client requirements quickly and nimbly. Bridge the gap between design and reality and match custom orders with standard lead times by speaking with one of our drainage design experts today.
CATCH BASIN SYSTEM
Our catch basins provide a secure link between surface drainage and subsurface plumbing systems. They come standard with our linear drainage systems and are available in hygienic and load-rated designs. Functioning as essential cleanouts, catch basins use strainer baskets to intercept solid debris before it enters wastewater piping. This design prevents underground blockages and allows for easy retrieval of lost items, ensuring constant performance.

Specifications

MATERIALS:	T304 Stainless Steel T316 Stainless Steel	FLOW RATE (per ft/305mm of drain):	½”–11 gpm / 13mm–42 lpm 1”–18 gpm / 25mm–68 lpm 1 ¼”–27 gpm / 32mm–102 lpm
SECTION LENGTHS:	Full 9’8” / 2946mm Half 4’10” / 1473mm Custom Lengths Available	SLOT OPENING:	1/2” / 13mm 1” / 25mm 1 1/4” / 32mm
LOAD CLASS:	DIN Class C ASME Heavy Duty
