FoodSafe Hub Drain

Have above ground piping or equipment in your facility that requires indirect drainage? The FoodSafe Hub Drain has you covered.


This product is a custom drainage solution by FoodSafe Drains.



Specifications

For specifications, please visit FoodSafe Drains website.

MATERIALS:
T304 or T316 Stainless Steel
Schedule 10, 40

INLET DIAMETER:
3"
4"
6″
8″
10"
12″
14"



Install Resources

Installation for various applications can be found here.

Accessories

This product is a custom drainage solution by FoodSafe Drains a division of Global Drain Technologies.

What is a Hub Drain?

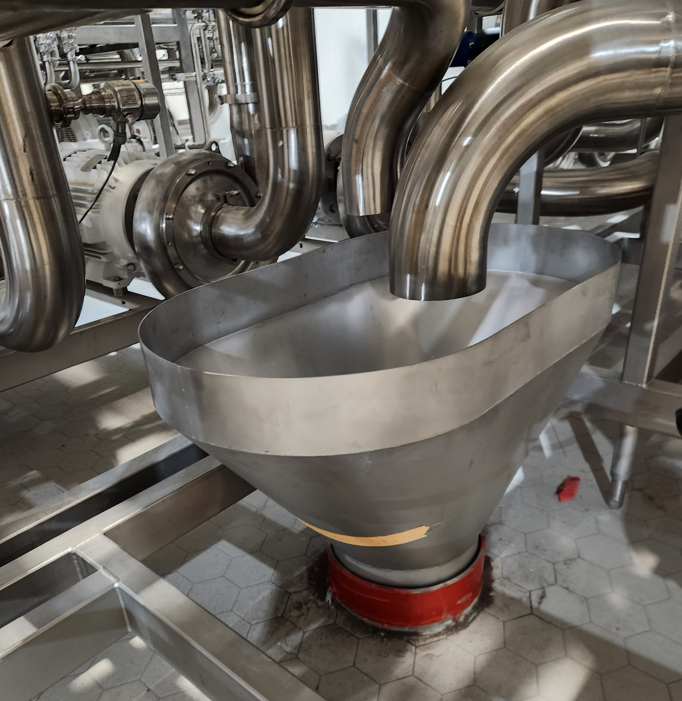

FoodSafe Hub Drains are specialized drains made to provide drainage for equipment whose drainage outlets require an air gap before draining into the main wastewater system. Hub Drains have a distinctive bell shaped curve due to the reducer coupling that connects the inlet and the outlet. They are installed with a rim that protrudes above the level of the surrounding surface to facilitate drainage while preventing overflow.

Hub Drain Features:

  • Removable Lid Available on All Standard Hub Drains
  • Specially Designed Strainer Basket; Protect Your Pipes
  • Standard Sizing Available in Type 304L and 316L
  • Contact Us to Learn About Custom Funnel Drain Options

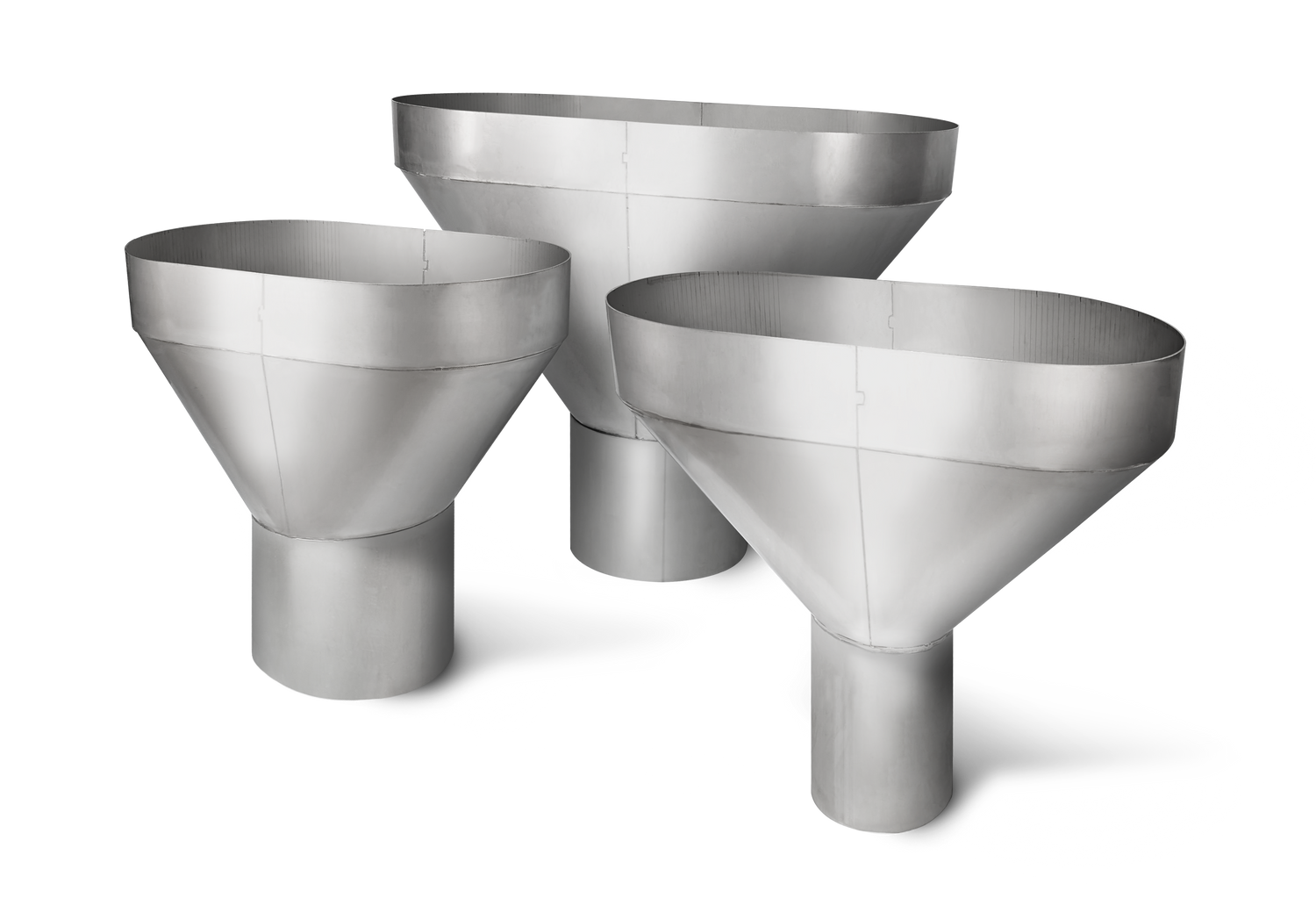

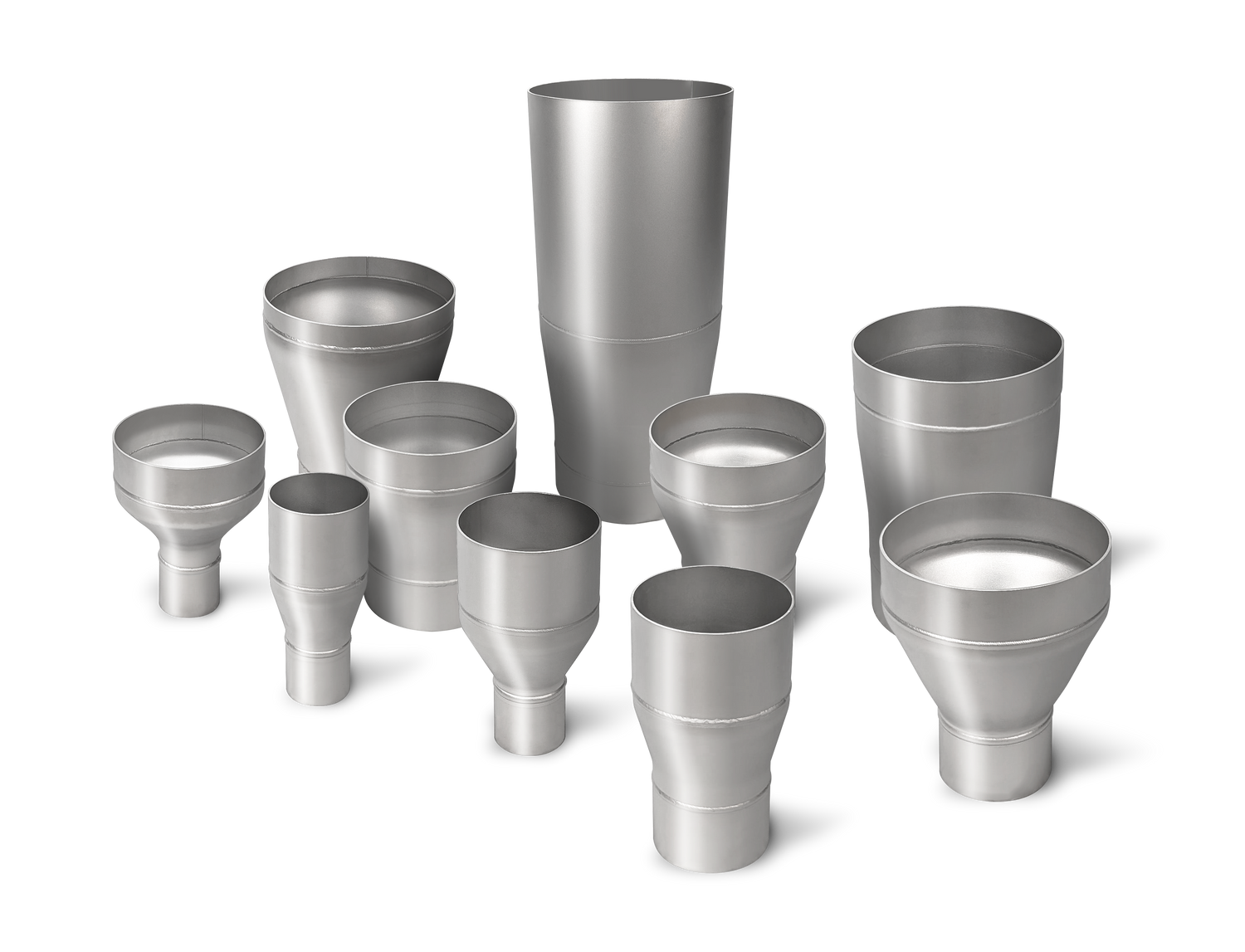

Standard and Custom Sizes Available

Our Hub Drains can be customized to meet your needs. They are available in a variety of standard sizes, that can be found under the technical information section of this page. These sizes come in standard heights but heights can be customized to suit your needs. We also offer custom fabricated funnel drains for projects requiring larger inlets.

Add a Removable Cover and Strainer Basket

Available with a removable cover as well as a strainer basket. Add one or both of these optional items to your hub drain to protect your facility’s underground plumbing system. The removable lid and specially designed strainer basket allow you to easily access and clear any solids that have entered the drain before they enter your main plumbing system. This means no downtime caused by clogged drains.

Food-safe Design: No niches means no harbor points for bacteria

This means a smooth interior with fully radius edges – no sharp corners which could harbor bacterial growth. Our Hub Drain is designed to handle the highest temperatures your facility can throw at it, and is easily accessible for a simple and speedy cleaning process.

Custom Engineered and Handcrafted

Each FoodSafe Drain product is custom engineered and handcrafted by our experienced team. Our multi-point inspection check allows us to guarantee drains of the highest quality. When properly installed, FoodSafe Drains can last for decades making them a solid investment in your food production facility.


Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Still not certain? Let us help you find the drainage solution that fits.

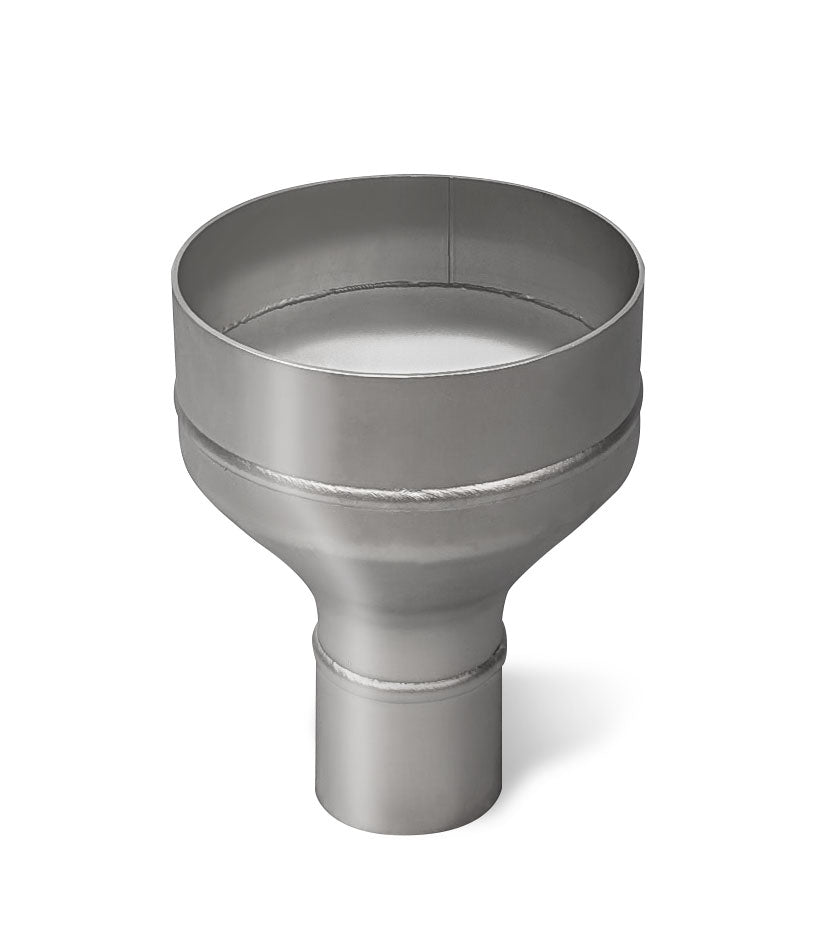

FoodSafe Hub Drain 10x4
