7000 Series Slot Drain

Name: 7000 Series Slot Drain
Brand: Global Drain Technologies
SKU: SD7600
Availability: InStock

Versatile and sleek linear landscape drainage solution ideal for plazas, patios, and pool decks.

Load Class: C
Materials: T304 or T316 Stainless Steel
Installation: Pre-sloped

STAINLESS STEEL

LOAD RATED

PRE-SLOPED

ADA COMPLIANT

SPECIFICATIONS CONTACT US REQUEST A QUOTE

APPLICATIONS

Pool Decks
Patios
Sidewalks
Plazas
Stormwater Management

Overview

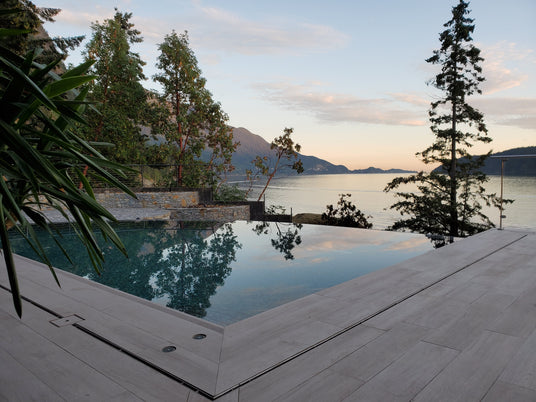

A 7000 Series Slot Drain Installed by a Pool in a residential home

The 7000 Series Slot Drain is our most versatile landscape drainage option. The narrow slot opening combined with the throat extension allows for complete integration of the inlet with hardscape surfaces. Take control of drainage design with this modular system thanks to customizable elbows, outlets, flow rates, and run lengths. Often installed in patios, plazas, and pool decks, the 7000 series provides functional drainage without compromising on aesthetics.

EASY TO MAINTAIN
Drainage systems must face leaves, dirt, and liquid runoff without clogging. You want a system designed to handle debris with minimal intervention. Pre-sloped drains use gravity to move solids through the system. A standard 0.5% slope pulls dirt and debris along the drain body. This evacuates standing water and decaying material that can cause foul odors. For manual cleaning, we include form-fit paddles that fit into the slot and are pulled along the length of the drain to clear debris into the catch basin system.
SEAMLESS DESIGN
Drains should disappear into the landscape. Fuse functionality and design integration with a low-profile slot drain solution. Grated drains can crack, warp and disrupt the look and feel of a space. Flush-fitting linear drainage hides in plain sight, matching any aesthetic and delivering accessible performance for pedestrians and vehicles. Ditch dirty channel drains and upgrade your space with a customized drainage solution from Global Drain Technologies.

CUSTOM ENGINEERING
Say goodbye to premiums for drafting, design engineering, and consultation services. Customization is baked into our in-house model and included directly in the original sales quote. We blueprint, manufacture, and ship all under one roof, allowing us to match client requirements quickly and nimbly. Bridge the gap between design and reality and match custom orders with standard lead times by speaking with one of our drainage design experts today.
CATCH BASIN SYSTEM
Our catch basins provide a secure link between surface drainage and subsurface plumbing systems. They come standard with our linear drainage systems and are available in hygienic and load-rated designs. Functioning as essential cleanouts, catch basins use strainer baskets to intercept solid debris before it enters wastewater piping. This design prevents underground blockages and allows for easy retrieval of lost items, ensuring constant performance.

Specifications

MATERIALS:	T304 Stainless Steel T316 Stainless Steel	FLOW RATE (per ft/305mm of drain):	½”–11 gpm / 13mm–42 lpm 1”–18 gpm / 25mm–68 lpm 1 ¼”–27 gpm / 32mm–102 lpm
SECTION LENGTHS:	Full 9’8” / 2946mm Half 4’10” / 1473mm Custom Lengths Available	SLOT OPENING:	1/2” / 13mm 1” / 25mm 1 1/4” / 32mm
LOAD CLASS:	DIN Class C ASME Medium Duty
