Radius Slot Drain

Name: Radius Slot Drain
Brand: Global Drain Technologies
Availability: InStock

Built-to-order custom curved drain, made to match the specific radius of your landscape project.

STAINLESS STEEL

LOAD RATED

PRE-SLOPED

SPECIFICATIONS CONTACT US REQUEST A QUOTE

APPLICATIONS

Pool Decks
Patios
Sidewalks
Plazas
Stormwater Management

Overview

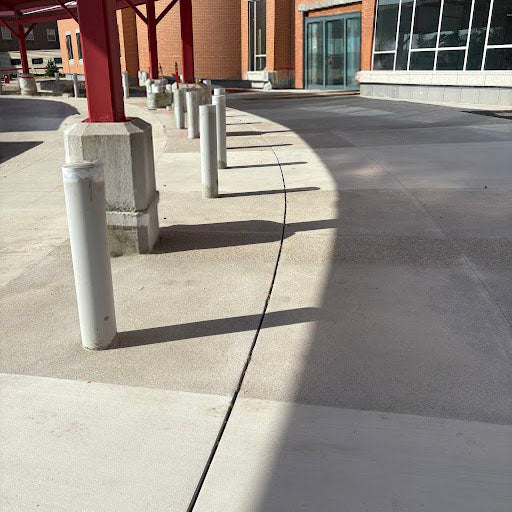

Radius drain installed outside a hospital

The Radius Slot Drain can be curved to match the specific radius of your landscape project. The narrow slot opening, combined with the throat extension, allows for complete inlet integration with hardscape surfaces. Often installed in areas like courtyards, walkways, and pool decks, this drain integrates seamlessly with any design. The Radius Slot Drain is perfect for projects with flowing aesthetics.

EASY TO MAINTAIN
Drainage systems must face leaves, dirt, and liquid runoff without clogging. You want a system designed to handle debris with minimal intervention. Pre-sloped drains use gravity to move solids through the system. A standard 0.5% slope pulls dirt and debris along the drain body. This evacuates standing water and decaying material that can cause foul odors. For manual cleaning, we include form-fit paddles that fit into the slot and are pulled along the length of the drain to clear debris into the catch basin system.
SEAMLESS DESIGN
Drains should disappear into the landscape. Fuse functionality and design integration with a low-profile slot drain solution. Grated drains can crack, warp and disrupt the look and feel of a space. Flush-fitting linear drainage hides in plain sight, matching any aesthetic and delivering accessible performance for pedestrians and vehicles. Ditch dirty channel drains and upgrade your space with a customized drainage solution from Global Drain Technologies.

CUSTOM ENGINEERING
Say goodbye to premiums for drafting, design engineering, and consultation services. Customization is baked into our in-house model and included directly in the original sales quote. We blueprint, manufacture, and ship all under one roof, allowing us to match client requirements quickly and nimbly. Bridge the gap between design and reality and match custom orders with standard lead times by speaking with one of our drainage design experts today.
CATCH BASIN SYSTEM
Our catch basins provide a secure link between surface drainage and subsurface plumbing systems. They come standard with our linear drainage systems and are available in hygienic and load-rated designs. Functioning as essential cleanouts, catch basins use strainer baskets to intercept solid debris before it enters wastewater piping. This design prevents underground blockages and allows for easy retrieval of lost items, ensuring constant performance.

Specifications

MATERIALS:	T304 Stainless Steel T316 Stainless Steel	FLOW RATE (per ft/305mm of drain):	½”–11 gpm / 13mm–42 lpm 1”–18 gpm / 25mm–68 lpm
SECTION LENGTHS:	Full 9’8” / 2946mm Custom Lengths Available	SLOT OPENING	1/2” / 13mm 1” / 25mm
