Cone Area Drain

Cone-bottomed and forklift-rated, designed for compact environments with hygienic requirements.

Load Class: Load Class E - Heavy-Duty (Forklift-rated)
Materials: T304 or T316 Stainless Steel
Available in round top or square top

STAINLESS STEEL

LOAD RATING

NSF COMPLIANT

HYGIENIC DESIGN

SPECIFICATIONS CONTACT US REQUEST A QUOTE

APPLICATIONS

Food & Beverage
Pharmaceuticals
Life Sciences
Manufacturing
Chemical Processing

Overview

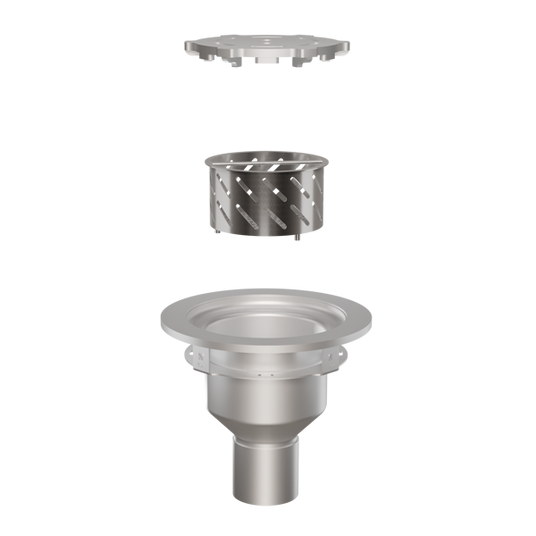

Cone Area Drain with lid and strainer basket

Our Area Drains feature a continuous-slope, fully drainable body and a no-niche hygienic design. They are recommended for rooms or localized processes that do not require linear drainage.

The Cone Area Drain provides a conical base that evacuates liquids at an accelerated rate for high-hygiene, high-flow applications. It comes standard with customizable options such as lids/grates, strainer baskets, and secondary locking strainers.

This drain is offered in both round-top and square-top configurations. Customers often choose round top for liquid-applied coatings and square top for tiled applications.

Our designs are fully compliant with NSF/ANSI/3-A standards. This means a smooth drain interior with fully radiused edges & no sharp corners, which could harbor bacterial growth.

HYGIENIC DESIGN
Constructed from premium T304/T316 stainless steel, our hygienic drains feature passivated surfaces, rounded corners, and no-niche designs. This eliminates pooling liquids and harborage points, controlling odors by mitigating bacterial growth. High-grade materials paired with robust manufacturing practices deliver durable drainage that meets or exceeds industry standards (NSF/ANSI/3-A) and supports internationally recognized certification programs (GFSI/SQF/BRGCS).
EASY CLEANING & MAINTENANCE
We make maintenance a breeze by designing from the ground up with accessibility in mind. Lids and grates are easily removable, giving cleaning staff access to all areas of the drain body. Rounded corners and no-niche designs leave no sharp corners where dirt and grime can hide. Our integrated strainer baskets are easy to remove and empty to manage solids and keep your system clear of debris. While optional, Clean-in-Place systems simplify and streamline sanitizing processes.

CUSTOM ENGINEERING
Say goodbye to premiums for drafting, design engineering, and consultation services. Customization is baked into our in-house model and included directly in the original sales quote. We blueprint, manufacture, and ship all under one roof, allowing us to match client requirements quickly and nimbly. Bridge the gap between design and reality and match custom orders with standard lead times by speaking with one of our drainage design experts today.
FILTERING SYSTEM
To maintain function without clogging, our drains use strainer baskets to intercept solids/debris before it enters wastewater piping. These filtering systems can be customized for your application through perforation size and density as well as basket style. These integrated strainers prevent underground blockages and allow for easy retrieval of lost items. SOP’s write themselves with this system, providing employees with clear direction, reducing downtime, and ensuring constant performance.

Specifications

MATERIALS:	T304 Stainless Steel T316 Stainless Steel	FLOW RATE:	32 gpm / 813 lpm
DIAMETER:	SURFACE - 14” / 356mm INTERIOR - 8” / 203mm	DEPTH:	12 5/8” / 321mm
OUTLET:	3” / 76mm 4” / 102mm 6” / 152mm
