Floor Clean Out

Our Floor Clean Out allows easy access to your underground drainage system, giving you a way to clear any clogging or debris that may occur in your lines.

MATERIALS: T304 or T316 Stainless Steel

STAINLESS STEEL

HYGIENIC DESIGN

CUSTOM ENGINEERING

SPECIFICATIONS CONTACT US REQUEST A QUOTE

APPLICATIONS

Food & Beverage
Pharmaceuticals
Life Sciences
Manufacturing
Chemical Processing

Overview

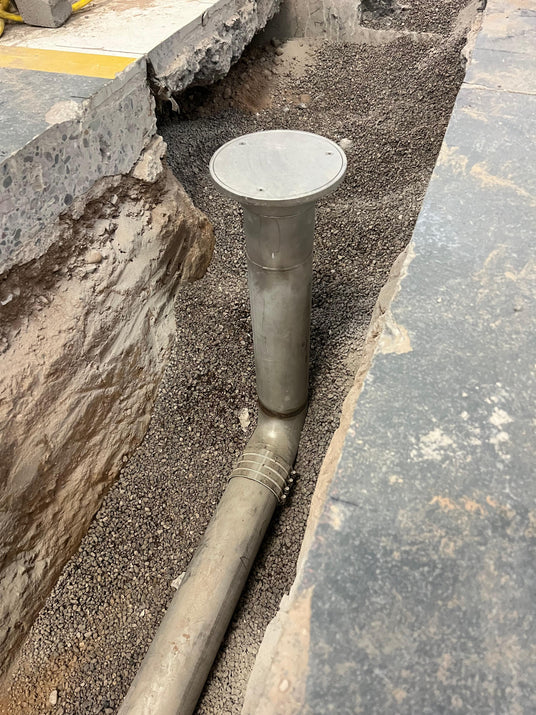

A galvanized steel floor clean out with a circular top cover, installed in a trench filled with gravel next to concrete structures.

The Floor Clean Out is designed for easy access to your facility's plumbing system, ensuring rapid, obstruction-free maintenance. Built with a no-niche, hygienic design, it features fully radiused edges and smooth T304/T316 stainless steel construction to eliminate bacterial harborage points.

HYGIENIC DESIGN
Constructed from premium T304/T316 stainless steel, our hygienic drains feature passivated surfaces, rounded corners, and no-niche designs. This eliminates pooling liquids and harborage points, controlling odors by mitigating bacterial growth. High-grade materials paired with robust manufacturing practices deliver durable drainage that meets or exceeds industry standards (NSF/ANSI/3-A) and supports internationally recognized certification programs (GFSI/SQF/BRGCS).
CUSTOM ENGINEERING
Say goodbye to premiums for drafting, design engineering, and consultation services. Customization is baked into our in-house model and included directly in the original sales quote. We blueprint, manufacture, and ship all under one roof, allowing us to match client requirements quickly and nimbly. Bridge the gap between design and reality and match custom orders with standard lead times by speaking with one of our drainage design experts today.

Specifications

MATERIALS:	T304 Stainless Steel T316 Stainless Steel EPDM O-Ring	DIMENSIONS (A - B - C - D)	8” - 0.5” - 4” - 6.3125” / 203mm - 13mm - 100mm - 160mm 10.5” - 0.5” - 6 - 6.6875” / 267mm - 13mm - 150mm - 170mm 12” - 0.5” - 8” - 9.25 / 305mm - 13mm - 200mm - 235mm
PIPE SCHEDULE:	40 10
